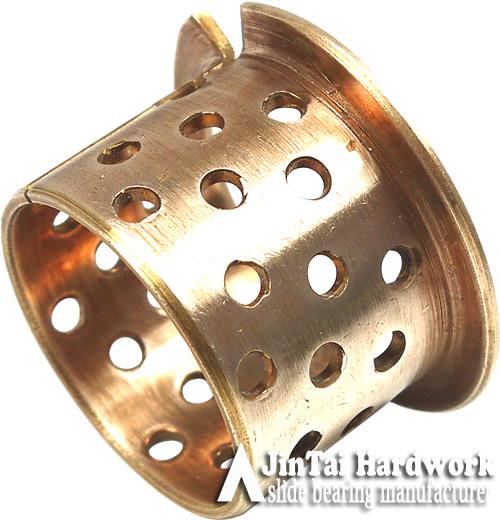

FB092F Wrapped Bronze bushing with Oil Holes

FB092 Wrapped bronze slide Bearing

What is FB092 wrapped bronze bearing?

FB092 Wrapped Bronze Bearings are made completely of bronze. They are particularly suitable for applications, which must be re-lubricated due to dirty environments.

The sliding surface is provided with lubrication holes, which contribute to the enhanced lubrication performance.

This bushing is produced in accordance with ISO 3547 and DIN 1494.

Where to use FB092 wrapped bronze bearing?

These bearings are suitable for both radial and axial movements.

The bushings are well suited for machinery in dirty environments where shock loads and/or vibrations occur.

Examples of applications are:

• Agricultural machinery
• Hoisting equipment
• Construction machinery
• Forest machinery

Why choose wrapped bronze bearing?

• Insensitive to dirty environments
• Resistant to shock loads and vibrations at slow speeds
• Good resistance to corrosive conditions

Which other bearings we can supply to you:

Our sliding bearings including:

SF-1(du) oilless bearing bushing (PTFE Composite)

SF-2(dx) slide bearing bushing (POM Composite)

FB090(FB090G) bronze bushing

FB092 bronze bushing

JDB,JFB solid graphite lubricating bushing

JF bi-metal bushing

FU sintered bronze or iron bushing

FZ POM/Al/Cu ball cage retainer

FR metal mesh+PTFE Soft strips

JGB Graphite bearings

Wrapped bearings standard sizes list for your reference

General introduction of us

We are a professional manufactuer on various kind of bearings in China for over 14 years already.

With updated machinery and skilled staffs we have supplied stable high quality products to customers all over the world.

Our experianced engineers and exporting team can answer your inquiry or comment at the first time,and providing professional service from factory visiting, making orders to deliver goods.

RIght now, we have over 100 skilled staff and different kinds of machines including automatic production lines,later machine,milling machine,CNC machine etc.

This picture showing our staff structure and basic machines list

This picture showing updated sintering machine and skilled workers in production

Our workshops are welcome you visiting:

This is our workshops buliding

We are using full new high quality raw materials only.

This is the bronze powder-steel backing sintereing line

This is a full automatic chamfering machine

Detail packing steps:

1.Clean bearings in anti-rust oil
2.Plastic films packing bearings to rollers
3.Bearings rollers put into plastic bag
4.Cartons with goods information label
5.Pallet for every 12ctns/24ctns/36ctns

Our packings are suitable for FCL or LCL sea shipping.

MOQ:1pc or 100pcs or 1000pcs

(Different model and size have different requirement)

Delivery: you can choose different delivery ways for different qty orders.

Our quality management:

We will make inter inspection on every step of production.

Also you can order inspection company monitoring our production in our workshops.

1.ISO/TS 16949 Production Quality Management Certification

2.We will make measure guages calibration every 6 months

3.Record of calibration in certified lab

4.Certificate of lab
JINTAI FB092F similar as CPS CPZDF

FB092F 2016F    20x23/30x16    CPZDF 2016
FB092F 2020F    20x23/30x20    CPZDF 2020
FB092F 2512.5F    25x28/35x12.5    CPZDF 2512.5
FB092F 2515F    25x28/35x15    CPZDF 2515
FB092F 2516F    25x28/35x16    CPZDF 2516
FB092F 2520F    25x28/35x20    CPZDF 2520
FB092F 2525F    25x28/35x25    CPZDF 2525
FB092F 3020F    30x34/45x20    CPZDF 3020
FB092F 3025F    30x34/45x25    CPZDF 3025
FB092F 3030F    30x34/45x30    CPZDF 3030
FB092F 3520F    35x39/50x20    CPZDF 3520
FB092F 3525F    35x39/50x25    CPZDF 3525
FB092F 3530F    35x39/50x30    CPZDF 3530
FB092F 3535F    35x39/50x35    CPZDF 3535
FB092F 4025F    40x44/55x25    CPZDF 4025
FB092F 4030F    40x44/55x30    CPZDF 4030
FB092F 4035F    40x44/55x35    CPZDF 4035
FB092F 4040F    40x44/55x40    CPZDF 4040
FB092F 4530F    45x50/60x30    CPZDF 4530
FB092F 4535F    45x50/60x35    CPZDF 4535
FB092F 4540F    45x50/60x40    CPZDF 4540
FB092F 4545F    45x50/60x45    CPZDF 4545
FB092F 4550F    45x50/60x50    CPZDF 4550
FB092F 5030F    50x55/65x30    CPZDF 5030
FB092F 5035F    50x55/65x35    CPZDF 5035
FB092F 5040F    50x55/65x40    CPZDF 5040
FB092F 5050F    50x55/65x50    CPZDF 5050
FB092F 5530F    55x60/70x30    CPZDF 5530
FB092F 5535F    55x60/70x35    CPZDF 5535
FB092F 5540F    55x60/70x40    CPZDF 5540
FB092F 5550F    55x60/70x50    CPZDF 5550
FB092F 6025F    60x65/75x25    CPZDF 6025
FB092F 6030F    60x65/75x30    CPZDF 6030
FB092F 6035F    60x65/75x35    CPZDF 6035
FB092F 6040F    60x65/75x40    CPZDF 6040
FB092F 6050F    60x65/75x50    CPZDF 6050
FB092F 6060F    60x65/75x60    CPZDF 6060
FB092F 6530F    65x70/80x30    CPZDF 6530
FB092F 6535F    65x70/80x35    CPZDF 6535
FB092F 6540F    65x70/80x40    CPZDF 6540
FB092F 654085F    65x70/85x40    CPZDF 654085
FB092F 6550F    65x70/80x50    CPZDF 6550
FB092F 6560F    65x70/80x60    CPZDF 6560
FB092F 7035F    70x75/85x35    CPZDF 7035
FB092F 7040F    70x75/85x40    CPZDF 7040
FB092F 7050F    70x75/85x50    CPZDF 7050
FB092F 7060F    70x75/85x60    CPZDF 7060
FB092F 7070F    70x75/85x80    CPZDF 7070
FB092F 7535F    75x80/90x35    CPZDF 7535
FB092F 7540F    75x80/90x40    CPZDF 7540
FB092F 7550F    75x80/90x50    CPZDF 7550
FB092F 7560F    75x80/90x60    CPZDF 7560
FB092F 7570F    75x80/90x70    CPZDF 7570
FB092F 8035F    80x85/95x35    CPZDF 8035
FB092F 8040F    80x85/95x40    CPZDF 8040
FB092F 8050F    80x85/95x50    CPZDF 8050
FB092F 8060F    80x85/95x60    CPZDF 8060
FB092F 8070F    80x85/95x70    CPZDF 8070
FB092F 8080F    80x85/95x80    CPZDF 8080
FB092F 9050F    90x95/110x50    CPZDF 9050
FB092F 9060F    90x95/110x60    CPZDF 9060
FB092F 9070F    90x95/110x70    CPZDF 9070
FB092F 9080F    90x95/110x80    CPZDF 9080
FB092F 9090F    90x95/110x100    CPZDF 9090
FB092F 10050F    100x105/120x50    CPZDF 10050
FB092F 10060F    100x105/120x60    CPZDF 10060
FB092F 10070F    100x105/120x70    CPZDF 10070
FB092F 10080F    100x105/120x80    CPZDF 10080
FB092F 10090F    100x105/120x90    CPZDF 10090
FB092F 11050F    110x115/130x50    CPZDF 11050
FB092F 11060F    110x115/130x60    CPZDF 11060
FB092F 11070F    110x115/130x70    CPZDF 11070
FB092F 11080F    110x115/130x80    CPZDF 11080
FB092F 11090F    110x115/130x90    CPZDF 11090
FB092F 12050F    120x125/145x50    CPZDF 12050
FB092F 12060F    120x125/145x60    CPZDF 12060
FB092F 12070F    120x125/145x70    CPZDF 12070
FB092F 12080F    120x125/145x80    CPZDF 12080
FB092F 12090F    120x125/145x90    CPZDF 12090
FB092F 13060F    130x135/155x60    CPZDF 13060
FB092F 13070F    130x135/155x70    CPZDF 13070
FB092F 13080F    130x135/155x80    CPZDF 13080
FB092F 13090F    130x135/155x90    CPZDF 13090
FB092F 14060F    140x145/165x60    CPZDF 14060
FB092F 14070F    140x145/165x70    CPZDF 14070
FB092F 14080F    140x145/165x80    CPZDF 14080
FB092F 14090F    140x145/165x90    CPZDF 14090
FB092F 15060F    150x155/180x60    CPZDF 15060
FB092F 15070F    150x155/180x70    CPZDF 15070
FB092F 15080F    150x155/180x80    CPZDF 15080
FB092F 15090F    150x155/180x90    CPZDF 15090
FB092F 16060F    160x165/190x60    CPZDF 16060
FB092F 16070F    160x165/190x70    CPZDF 16070
FB092F 16080F    160x165/190x80    CPZDF 16080
FB092F 16090F    160x165/190x90    CPZDF 16090
FB092F 17060F    170x175/200x60    CPZDF 17060
FB092F 17070F    170x175/200x70    CPZDF 17070
FB092F 17080F    170x175/200x80    CPZDF 17080
FB092F 17090F    170x175/200x90    CPZDF 17090
FB092F 18060F    180x185/215x60    CPZDF 18060
FB092F 18070F    180x185/215x70    CPZDF 18070
FB092F 18080F    180x185/215x80    CPZDF 18080
FB092F 18090F    180x185/215x90    CPZDF 18090
FB092F 19060F    190x195/225x60    CPZDF 19060
FB092F 19070F    190x195/225x70    CPZDF 19070
FB092F 19080F    190x195/225x80    CPZDF 19080
FB092F 19090F    190x195/225x90    CPZDF 19090
FB092F 20060F    200x205/235x60    CPZDF 20060
FB092F 20070F    200x205/235x70    CPZDF 20070
FB092F 20080F    200x205/235x80    CPZDF 20080
FB092F 20090F    200x205/235x90    CPZDF 20090
FB092F 22090F    220x225/245x90    CPZDF 22090
FB092F 22560F    225x230/x60    CPZDF 22560
FB092F 22570F    225x230/x70    CPZDF 22570
FB092F 22580F    225x230/x80    CPZDF 22580
FB092F 22590F    225x230/x90    CPZDF 22590
FB092F 23090F    230x235/265x90    CPZDF 23090
FB092F 25060F    250x255/x60    CPZDF 25060
FB092F 25070F    250x255/x70    CPZDF 25070
FB092F 25080F    250x255/x80    CPZDF 25080
FB092F 25090F    250x255/x90    CPZDF 25090
FB092F 26560F    265x270/x60    CPZDF 26560
FB092F 26570F    265x270/x70    CPZDF 26570
FB092F 26580F    265x270/x80    CPZDF 26580
FB092F 26590F    265x270/x90    CPZDF 26590
FB092F 28560F    285x285/x60    CPZDF 28560
FB092F 28570F    285x285/x70    CPZDF 28570
FB092F 28580F    285x285/x80    CPZDF 28580
FB092F 28590F    285x285/x90    CPZDF 28590
FB092F 30060F    300x305/x60    CPZDF 30060
FB092F 30070F    300x305/x70    CPZDF 30070
FB092F 30080F    300x305/x80    CPZDF 30080
FB092F 30090F    300x305/x90    CPZDF 30090
